specific and significant applications

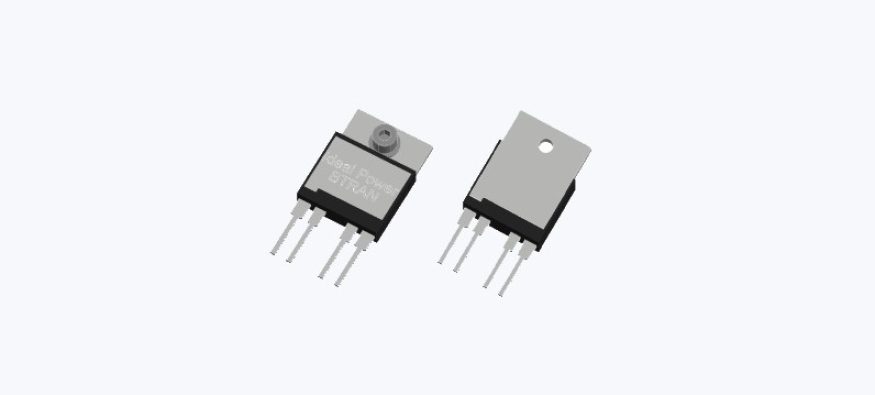

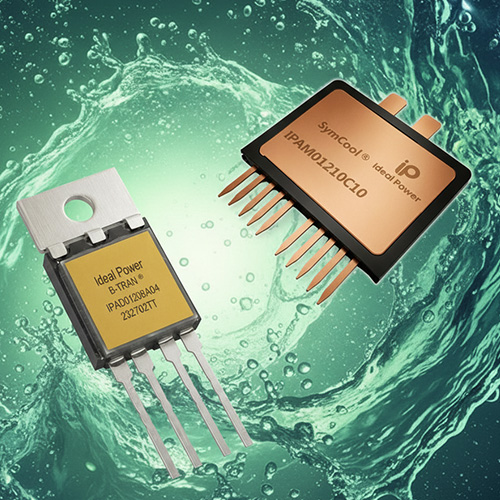

Ideal Power’s B-TRAN™ Semiconductor Power Switch
Compared to conventional semiconductor power switches, such as Insulated-Gate Bipolar Transistors, or IGBTs, B-TRAN™ offers significant improvements in efficiency, reducing power losses by 50% or more depending on the application. The higher efficiency of B-TRAN™ results in less heat being generated and thus significantly lower thermal management requirements. In addition, the B-TRAN™ is bidirectional, replacing multiple conventional power switches with a single B-TRAN™ in bidirectional applications.
Power semiconductors account for about 20% of the total electric power losses in hybrid EVs and potentially more of the losses in an EV. Utilizing B-TRAN™s rather than conventional power switches in an EV could potentially result in a 7% to 10% improvement in its range.
The heart of these chargers is an AC-DC converter that uses IGBT or silicon MOSFET switch technology depending on power level. B-TRAN™ offers approximately 50% lower losses than current IGBT switches. Result is reduced charging time and consumer cost.
Inverter efficiencies are expected to approach 99% utilizing B-TRAN™s, compared to up to 97% with standard IGBT based designs. This results in more usable electricity at lower costs, lower thermal management costs and potentially lower cost inverter designs.

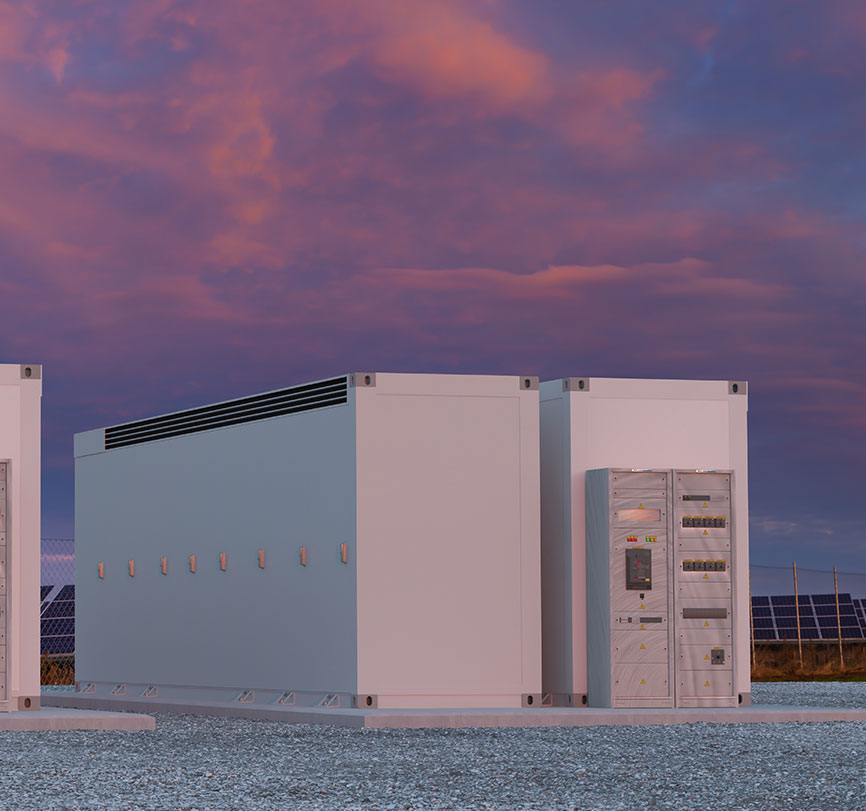

Energy storage can be used for demand charge management or paired with solar or wind to make renewables a firm and dispatchable source of energy. B-TRAN™ would increase the value of energy storage systems due to its bidirectionality and higher efficiency.
In a UPS data center application, the lower conduction loss of B-TRAN™ is expected to result in annual electricity savings. Wasted energy impacts the cost and complexity of data center cooling system. Our technology could significantly improve UPS efficiency.
Solid-State Circuit Breakers
B-TRAN™ is an enabling technology for SSCBs. B-TRAN™ offers potentially more than a 50% reduction in conduction losses compared to IGBTs allowing much more useful energy to be transmitted with lower cost and less complex cooling systems, significantly impacting the economics.
